Recently I build a new set of loadspeakers called Bragi. I did not design them they are availabla as a DIY kit from Seas. Or directly from my home page.

Bragi
Bragi.

I wanted a set of loadspeakers with litte variations in the impedance curve to use with my transformer coupled amplifier . Bragi fulfileld this criteria quite nice. I did not have 19mm plywood available, but I had 21mm. I therefore made some small changes to the box as can be seen in my modified drawing below.

Modified Bragi box drawing
Box drawing.

Here are some pictures of from the asembling.

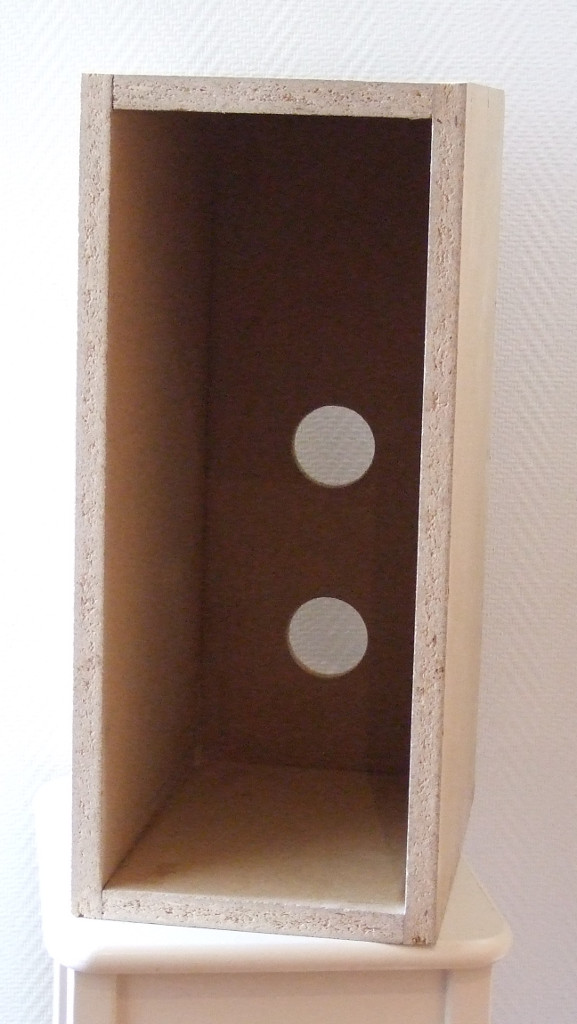

Open box without front panel
Bragi, open without front.

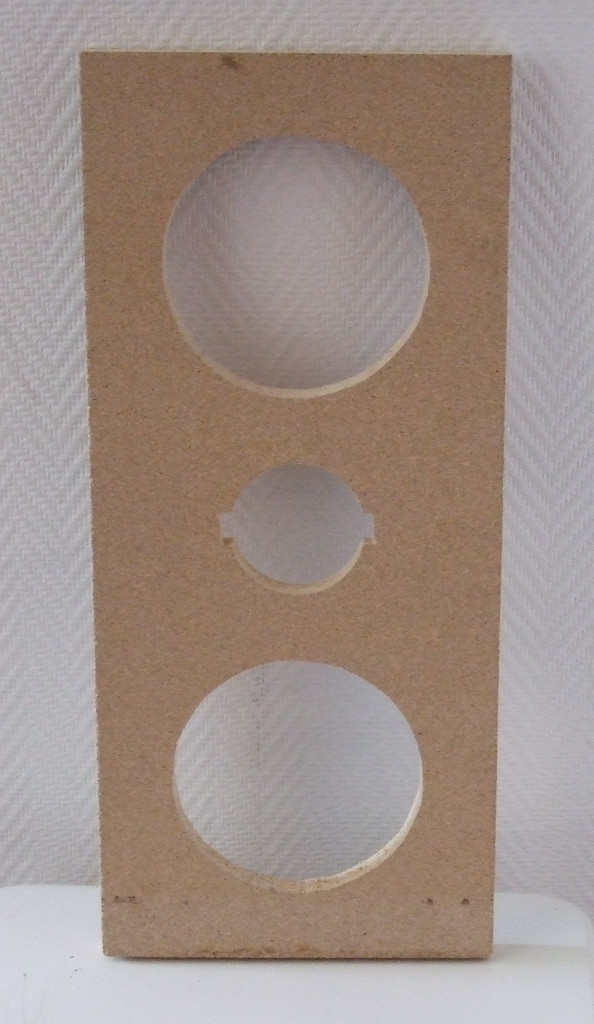

Front panel
The front panel of Bragi.

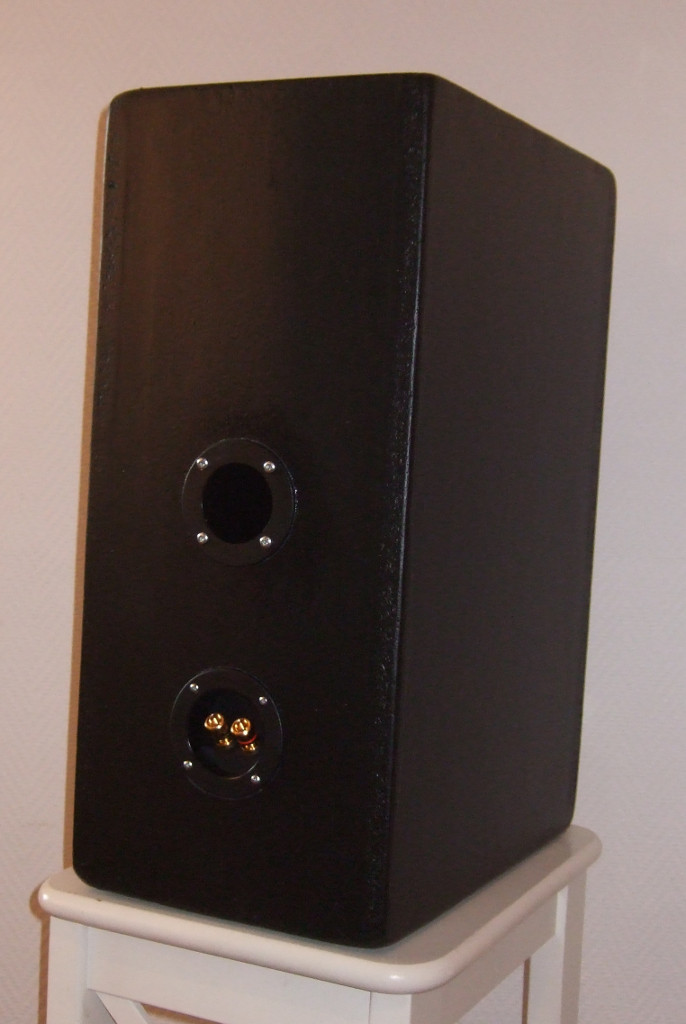

Back of Bragi
Bragi seen from the back.

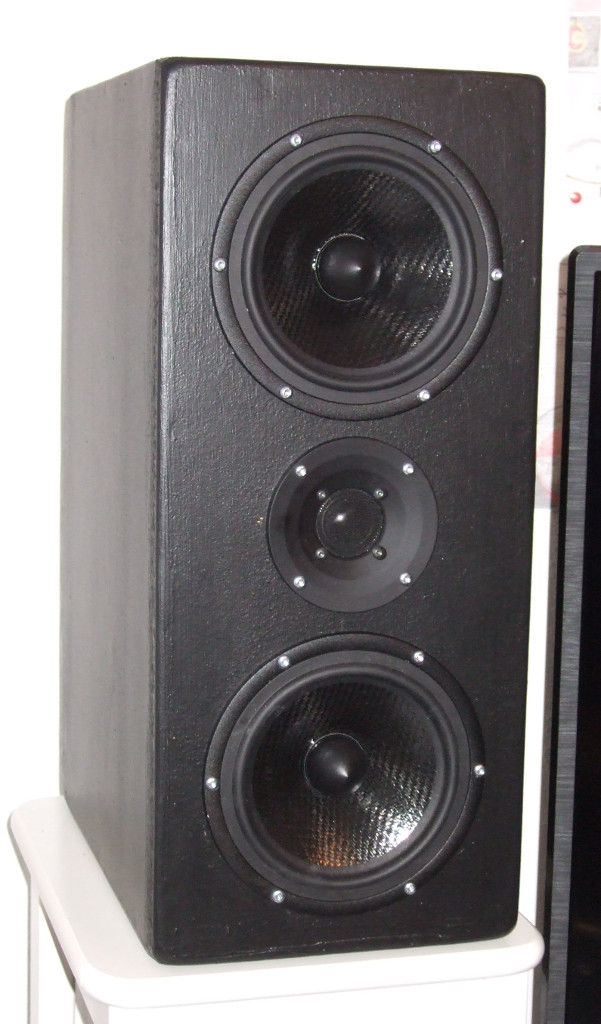

Front of Bragi
Bragi.
